Sinotruk Dump Yük maşını sürücüsü rejimi 6x4

Fumin Sinotruk dump truck drive mode 6X4Hongye is made in China.

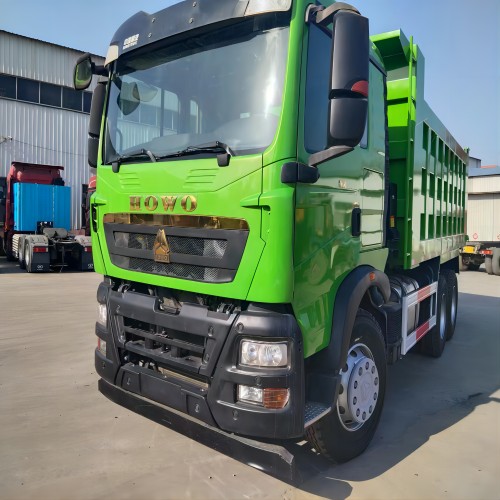

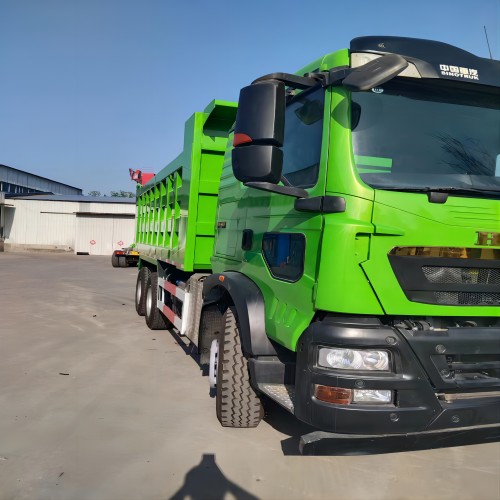

Sinotruk dump truck drive mode 6X4

Drive form 6X4

Wheelbase 3225+1350mm

Engine Sinotruk MC13.540-50

Gearbox SINOTRUK HW25712XSTL

Body length 7.12 meters

Body width 2.496 meters

Body height 3.85 meters

Front wheelbase 2041mm

Rear wheelbase 1830/1830mm

Vehicle weight 8.8 tons

Total mass 25 tons

Total towing mass: 40 tons

Maximum speed 89km/h

Market segments Logistics distribution

Place of Origin Jinan, Shandong

Tonnage level heavy truck

Engine parameters

Engine model Sinotruk MC13.540-50

Engine brand China National Heavy Duty Truck

Number of cylinders 6 cylinders

Fuel type Diesel

Cylinder arrangement: in-line

Displacement 10.518L

Emission standards National V

Maximum horsepower 540 horsepower

Maximum output power 324kW

Maximum torque 2100N·m

Maximum torque speed 1000-1400rpm

Rated speed 1900rpm

Technology Route Common Rail SCR

Cab parameters

Allowed number of passengers: 2 people

Gearbox parameters

Gearbox model Sinotruk HW25712XSTL

Gearbox brand China National Heavy Duty Truck

Gear shifting method manual

Forward gear: 12 gears

Number of reverse gears: 2

Chassis parameters

Allowable load of front axle 7000kg

Allowable load of rear axle: 18000 (two-axle group) kg

Suspension form: Few leaf springs in the front and eight airbags in the rear

Number of spring leaves 2/-
